Introduction

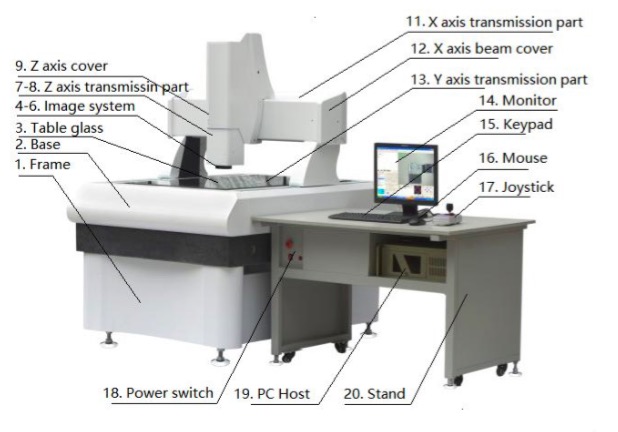

Automatic large scale Video Measuring Machine (600*600)is high precision measurement solutions for large parts. Complete with Metrology Software, Programmable Zoom lens, Servo motion control, the Vision machine measure parts up to 2 meters



Application

3D Video Measuring Machine is the ideal model for larger LCD, LED, PCB, Film and Large glass products inspection. Working with professional CNC Metrology software and Auto-lens satisfies various sizes measurements.



The Vision systems are also widely used with multiples of smaller parts nested in a fixture.



Features

DIN 000 grade granite table master

0.0005mm resolution grating scale on X, Y and Z axis

USA NAVITAR 0.7X-4.5X zoom lens

 Japan SENTECH 1/2 CCD Camera

Programmable surface cold-light source and contour parallel source

 Fast Servo Motor Control

Z measurements with Vision Fastly and accurately

Powerful Metrology software is simple to use, combination with joystick, keypad and mouse

The Vision Systems are Probe-ready (option), including UK RENISHAW contact probe and Japan Keyence CCD laser probe



Other Table Size Provided(or customized):

2D/3D VMM-400*300   Automatically   Manually

2D/3D VMM-500*400   Automatically   Manually
