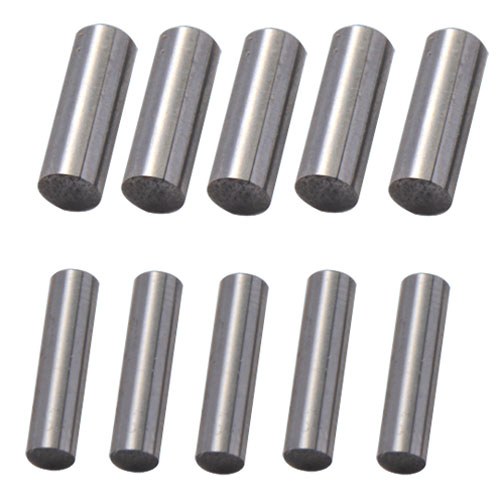

Positioning Pin
APPLICATION:Positioning when in hole drlling and panel milling.
FEATURES:Brightness and pureness in surface Base material are made by special steel.
TOLERANCE:+0.00/-0.01mm
NAIL HEAD:Round head or chamfer end/Flat head
SPECIFICATION:
Pin for drilling use:Diameter(a)Φ3.1、Φ3.12、 Φ3.15、Φ3.175 Length(L)13、15、15.8、18、20
Pin for miling use:DiameterΦ0.8-5.0 (interval 0.05 each) Length(L) 13、15.8、18、20
EiameterΦ0.75-Φ6.5 (interval 0.05 each) Length(L) 15.8
